Using the proper finishing process is critical to any CNC machined part. Of course, one major benefit is the parts just look better. When parts are unfinished, the often look incomplete. The right finish conveys a perception of higher quality, which customers certainly appreciate.

More importantly however, finishing allows for better observation of small flaws. When properly finished, it is easier to see if a part has been adequately de-burred, and if small machining transitions such as tram line or cutter-to-cutter have accurately completed.

Following are some of the metal and plastic standard finishes used at Protomatic, along with end results.

  • As-machined vs fine grain sand
    The most common finish is simply as-machined. It is typically specified by the Micro Finish call-out on the print. The most common is an “Ra of 63 micro inches” or less. The second most common is a fine grain finish.
machined-vs-fine-grain-sand
Left as-machined. Right, fine sand/ Scotch Brite (3M™) creates a fine grain finish.
  • Sheet metal — timesaver sanding
    Prior to bending, a “Timesaver” sanding is commonly performed. This is a relatively coarse sand of the two flat surfaces prior to bending. Bend contact marks will be present after forming.

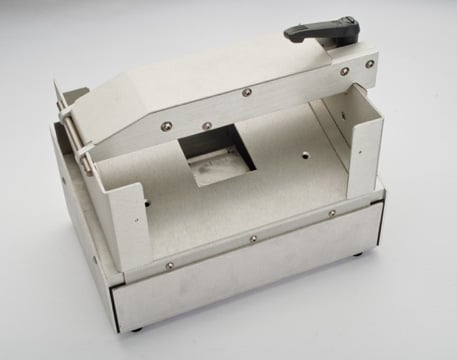

Sheet-metal-timesaver-sanding
This ECU Emulator test stand used ”Timesaver” sanding on sheet metal assy.
  • Vibratory media tumbling
    This type of finishing is usually defined by the shape of the media used to perform the tumbling operation. Since vibratory tumbling is a gravity-based energy method, the speed is controlled by the size of the media. Heavier and larger media is faster, but size and shape control the level of detail when deburring inside corners. These parts are individually tumbled to prevent part to part nicks.
Vibratory-media-tumbling
This peristaltic pump hose clamp assembly used tetrahedron-shaped media, with Anodize Clear Type II. Available is magnetic media tumbling for small delicate parts, creating near polished (not shown).
  • As-machined vs glass bead
    Another common finish is a uniform matte finish, created with a spherical glass bead. This is typically specified by the size of the media and the pressure of the air blasting nozzle. Size of bead can be found seen in mil spec. MIL-PRF-9954.
  • Other media such as silicon carbide or aluminum oxide are not spherical. When those media are used, they create a uniform finish. But since the media is cubic, not spherical, the indents are cubic shape. This cubic shape creates micro flats, and when rotating a part, it will glisten occasionally when the reflection angle is just right.

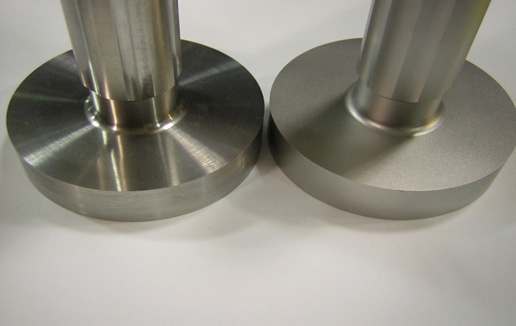

machined-vs-glass-bead
Left, an as-machined impactor-handle medical tool. Right, glass bead Mil-PRF-9954 #10, 50psi
  • Micro Blasting
    Micro blasting is available for intricate small parts.
Micro-Blasting
This pencil sized blaster uses media similar to a fine “baking soda”.
  • Shot peen
    For castings, shot peen stress relieves surface tension creating a more stable part after machining. Additionally, shot peening will make the part look more uniform and will remove some casting flash or blend minor casting mold mismatch seams.
Shot-peen
  • Chemical film (Mil-DTL-5541)
    This is a cleaning, corrosion and static-electricity-based coating protection that is only used on aluminum parts. It is ideal prior to molding, adhesive or paint primer applications.

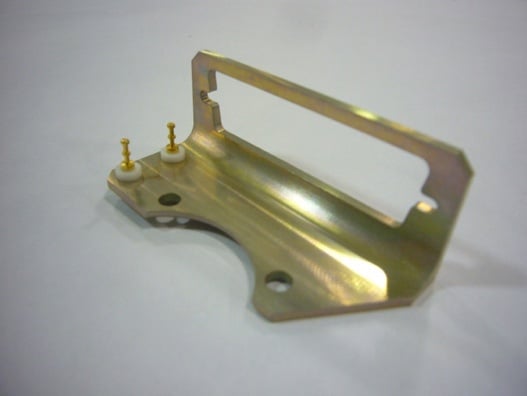

Chemical-film
Chem film MIL-DTL-5541 Class I
  • Anodize ASTM-A-8625 Type II Blue
    If someone says “anodize,” they mean ASTM-A-8625 Type II. Although this standard has three different types, Type II is the most common. Various colors available from clear (natural), to reds, greens, and blues. The most common anodize color is black.
Anodize ASTM-A-8625 Type II Blue
Anodize ASTM-A-8625 Type II, royal blue and blue A.
  • Painting - Series of processes
    A series of processes are typically used for painted parts. Common processes are typically an initial chemical film Mil-DTL-5541; then CARC primer, and finally a CARC paint.

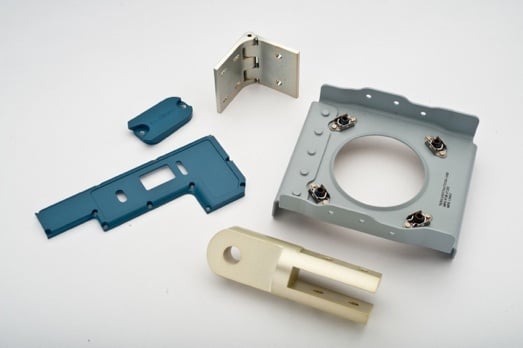

Painting- Series of processes
Example parts from chemical film Mil-DTL-5541; primer gray; and blue CARC.
  • Polish
    Polishing operations are best performed on hard materials. These parts are polished through a sequence of progressively finer sand paper and polishing compounds. Medical-grade polishing requires compounds that do not use animal lard-based rouge polishing sticks to minimize possible biocompatibility cross contamination. Post-polishing typically requires a cleaning operation such as Passivation ASTM-A-967 or ASTM-F86 for removal of micro-fine iron.
Polish
Titanium 6AL4V Gr 23, (ELI), tubes ID and OD polished to Ra 2-4 Micro Inch of roughness, then laser marked and passivated.
  • Laser marking

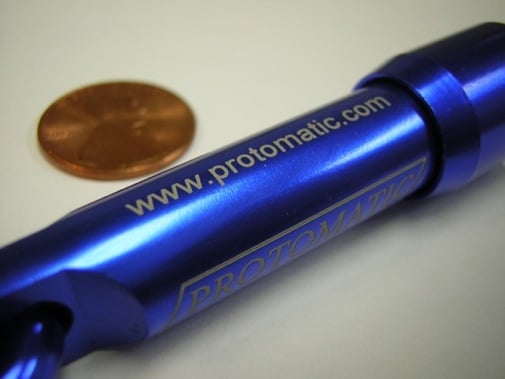

    Finishing touches make the difference. Laser marking is available with a 4-axis fiber laser marker. This example of a blue anodized aluminum part was laser marked to remove the anodize, and created a white/natural color for the logo and font. Font can be marked down to 0.010’’ high. Bar codes and thousands of images are available.
Laser Marking

These are just some (many others not included) of the various finishing processes that are available to engineers. I hope they give you more insight in the purpose of these specialized finishing operations and why they are performed.
